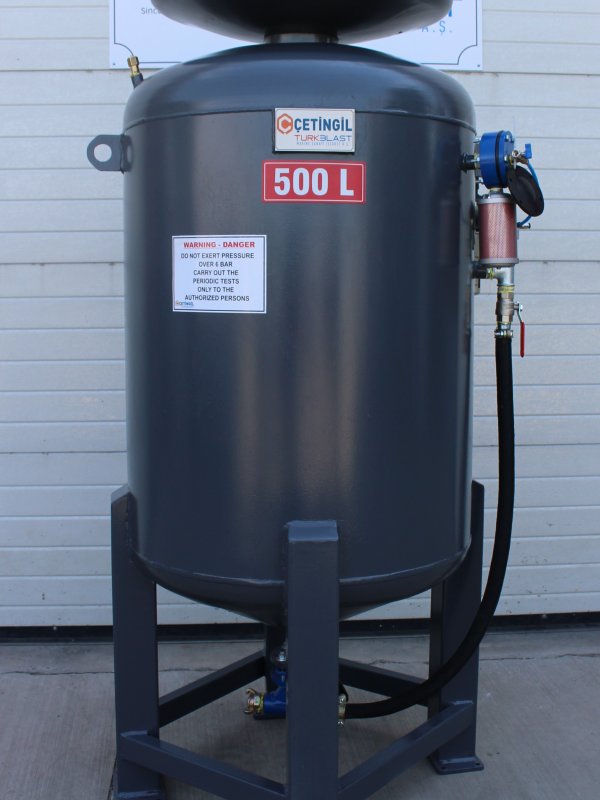

Portable Blasting Machine

Mobile Sandblasting Machine can sandblast with all types of sand. It has a trigger(deadman conttrol) and automatic device with remote control feature, water trap filter regulator, and 8-stage sand adjustment valve. In order to use our portable sandblasting machines, at least 22 kW screw compressor and air tank are required.

Portable shot blasting machines are used for blasting large-scale materials, vehicle parts, and vehicles where necessary ventilation conditions occur or at outdoor

In order to use portable blasting machines, at least a 22 kW screw compressor and air tank are required.

In our company, CE certified 50LT and 700LT mobile shot blasting machinery and boilers are produced.

The boilers of our sandblasting machines are subjected to 18 bar pressure water test even though they operate between 6 and 8 bar.

There are remote control triggers on our portable sandblasting machines which are completely our own production. In this way, there is no need for any other operator who will have to open and close the sand during sandblasting. Unnecessary sand flow is prevented.

Machine surface is painted with static oven / wet paint.

The machine is portable and has 2 or 3 wheels. (Except CSK 500 and CSK 700)

There is a manual sieve on the machine and it can sandblast with all kinds of sand.

There is an easily adjustable, 8-stage and chrome-plated sand adjustment valve on the machine.

There is a CE certified safety valve made of brass that evacuates the excess compressed air against the risk of explosion on the machine.

1 venturi nozzle and nozzle apparatus are supplied with the machine.

Half dress and mask will be given with the sandblasting machine.

There is a filter to prevent the entry of carbon monoxide gas into the mask.

CODE	*STEEL GRANULE	EMPTY WEIGHT	AIR CONSUMPTION	WORKING PRESSURE (Bar)	NOZZLE DIAMETER
CSK-50	150 kg	75 kg	3000 Lt/min.	6 - 8	6 mm
CSK-100	300 kg	115 kg	3800 LT/min.	6 - 8	8 mm
CSK-200	600 kg	125 kg	3800 LT/min.	6 - 8	8 mm
CSK-300	900 kg	175 kg	3800 LT/min.	6 - 8	8mm
CSK-500	1500 kg	200 kg	5000 LT/min.	6 - 8	10 mm
CSK-700	2400 kg	370kg	7000 LT/min.	6 - 12	10 mm

The data in the table are approximate. it may vary depending on the sand kind
Cannot be used for document purpose

Nozzle Type	Steel Granule	Silica	Aluminum Oxide
Aluminum	20 – 40h	10 – 30h	1 – 4h
Tungsten Carbide	500 – 800h	300 – 400h	20 – 40h
Silicon Carbide	500 – 800h	300 – 400h	50 – 100h
Boron Carbide	1500 – 2500h	750 – 1500h	200 – 1000h

This table shows the life of the nozzles in hours according to the type of using sand

NOZZLE / HOSE	DKP SHEET	BLACK SHEET	PAINTED SHEET	RUSTED SHEET	DIRTY SHEET	PAINTED ALUMINUM	STAINLESS	GLASS	WOOD	COMPOZIT	GRANITE /BAZALT /BEIGE/MARBLE
Ø 6 mm /1”	7,5-10m²/h	6-8m²/h	5-7m²/h	5,5-7m²/h	4-6m²/h	25-35m²/h	10-12m²/h	50-60m²/h	40-45m²/h	40-45m²/h	5-7 / 6-8 / 10-12 / 15-17 m²/h
Ø 8 mm/1”	8,5-11m²/h	8-10m²/h	7-9m²/h	6,5-8m²/h	5-7m²/h	35-45m²/h	12-14m²/h	55-65m²/h	42-47m²/h	42-47m²/h	6-8 / 7-9 / 11-13 / 16-18 m²/h
Ø 10 mm/1”	10-13m²/h	10-12m²/h	9-11m²/h	8-10m²/h	7-9m²/h	40-50m²/h	14-16m²/h	65-80m²/h	45-50m²/h	45-50m²/h	8-10 / 9-11 / 12-15 / 18-20 m²/h
Ø 12 mm/1/½”	15-18m²/h	13-15m²/h	12-14m²/h	11-13m²/h	10-12m²/h	55-65m²/h	20-22m²/h	80-99m²/h	60-65m²/h	60-65m²/h	12-14 / 13-15 / 16-20 / 22-25 m²/h
